Ceramic DC1000V Energy Storage System Fuse , MEV High Voltage Fuse

Name: Ceramic DC1000V Energy Storage System Fuse MEV High Voltage Fuse
Brand: Dissmann
Price: 1 USD

Brand Name : Dissmann

Model Number : MEV

Certification : UL248-13、ISO8820、JAS0-D622、IEC60269、RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Rated Voltage : DC/AC1000V

Rated Current : 350A-1250A

Meet the Requirement : UL248-13,ISO8820,JASO-D622,IEC60269,Rohs

Type Protection : aR

Breaking Capacity : DC10KA(Time constant<10ms)

Remarks : ----

Contact Now

Professional fuse manufacturer/More than 20 years of production experience/ Reliable quality/ Preferential price

^{DC1000V Ceramic Fuse MEV-J-H40/H60 Series Fuse for Energy Storage System}

^{1.Basic information of the Energy Storage System Fuse:}

Rated Voltage	DC/AC1000V	Type Protection	aR
Rated Current	350A-1250A	Breaking Capacity	DC10KA(Time constant<10ms)
Meet the Requirement	UL248-13,ISO8820,JASO-D622,IEC60269,Rohs	Remarks	----

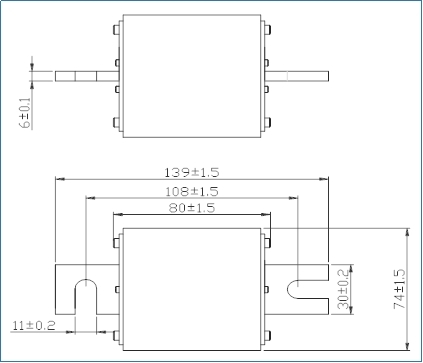

2.Overall Dimensions of the Energy Storage System Fuse:

Ceramic DC1000V Energy Storage System Fuse , MEV High Voltage Fuse

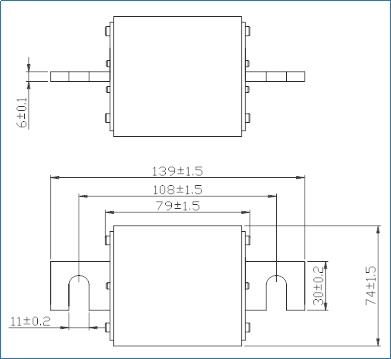

Size Model:MEV-J-H40

Ceramic DC1000V Energy Storage System Fuse , MEV High Voltage Fuse

Size Model:MEV-J-H60

Difference between the two models is the blade shapes,So the installation method will be different.

3.Product Type of the Energy Storage System Fuse:

Model	Product code	Rated current A	I²t(A²Sec)		Power consumption W
Model	Product code	Rated current A	Pre-arc	Total	Power consumption W
MEV-J-H40/ MEV-J-H60	MEV-J-H40-350/MEV-J-H60-350	350	16600	129000	103
	MEV-J-H40-400/MEV-J-H60-400	400	22900	177000	110
	MEV-J-H40-450/MEV-J-H60-450	450	32100	249000	124
	MEV-J-H40-500/MEV-J-H60-500	500	42900	333000	133
	MEV-J-H40-5500/MEV-J-H60-550	550	58000	449000	147
	MEV-J-H40-630/MEV-J-H60-630	630	84800	657000	160
	MEV-J-H40-700/MEV-J-H60-700	700	121000	934000	167
	MEV-J-H40-800/MEV-J-H60-800	800	181000	1400000	175
	MEV-J-H40-900/MEV-J-H60-900	900	265000	2060000	186
	MEV-J-H40-1000/MEV-J-H60-1000	1000	366000	2840000	196
	MEV-J-H40-1100/MEV-J-H60-1100	1100	511000	3960000	200
	MEV-J-H40-1250/MEV-J-H60-1250	1250	660000	5200000	220

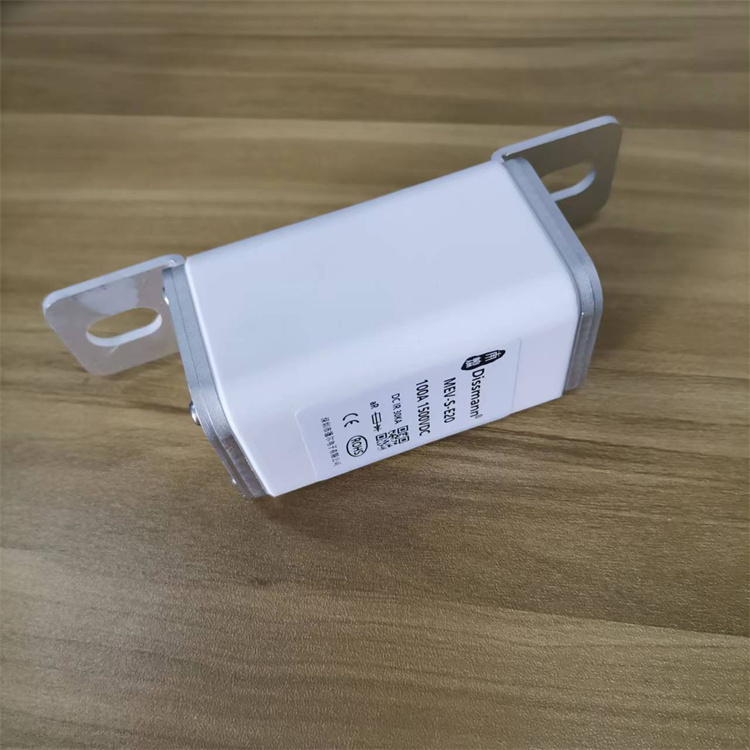

4.Physical Display of the MEV Fuse:

Ceramic DC1000V Energy Storage System Fuse , MEV High Voltage Fuse

The Dissmann MEV Series Fuse are Ceramic Square Fuse.The Rated Voltage include: AC690V/DC750V (10A-400A); AC690V/DC750V(250A-500A);AC/DC600V(40A-630A);AC690V/DC750V(40A-630A);AC690V/DC500V(400A-1250A) etc.
